Indicator Light FLASH |
|

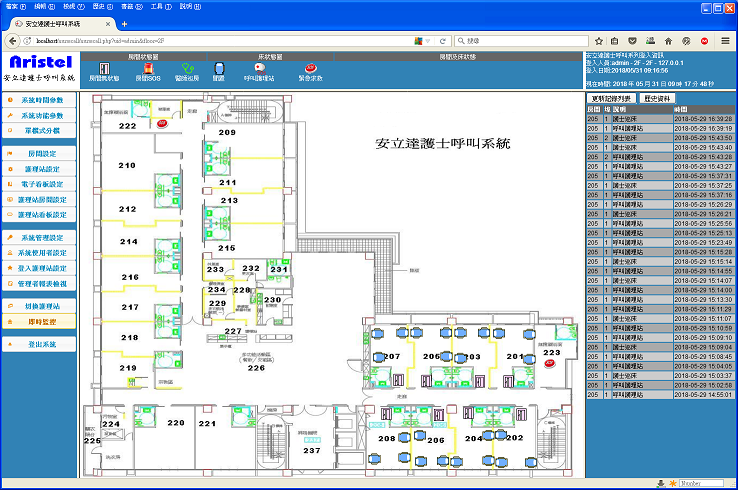

Shows the Incident Room Number Recorded on Nurse Station PC |
|
on Headboard Call Intercom |
|
|
|
|
|
|
|||||
|
|
||||||
|
|
|||||
|
|
|
|
|

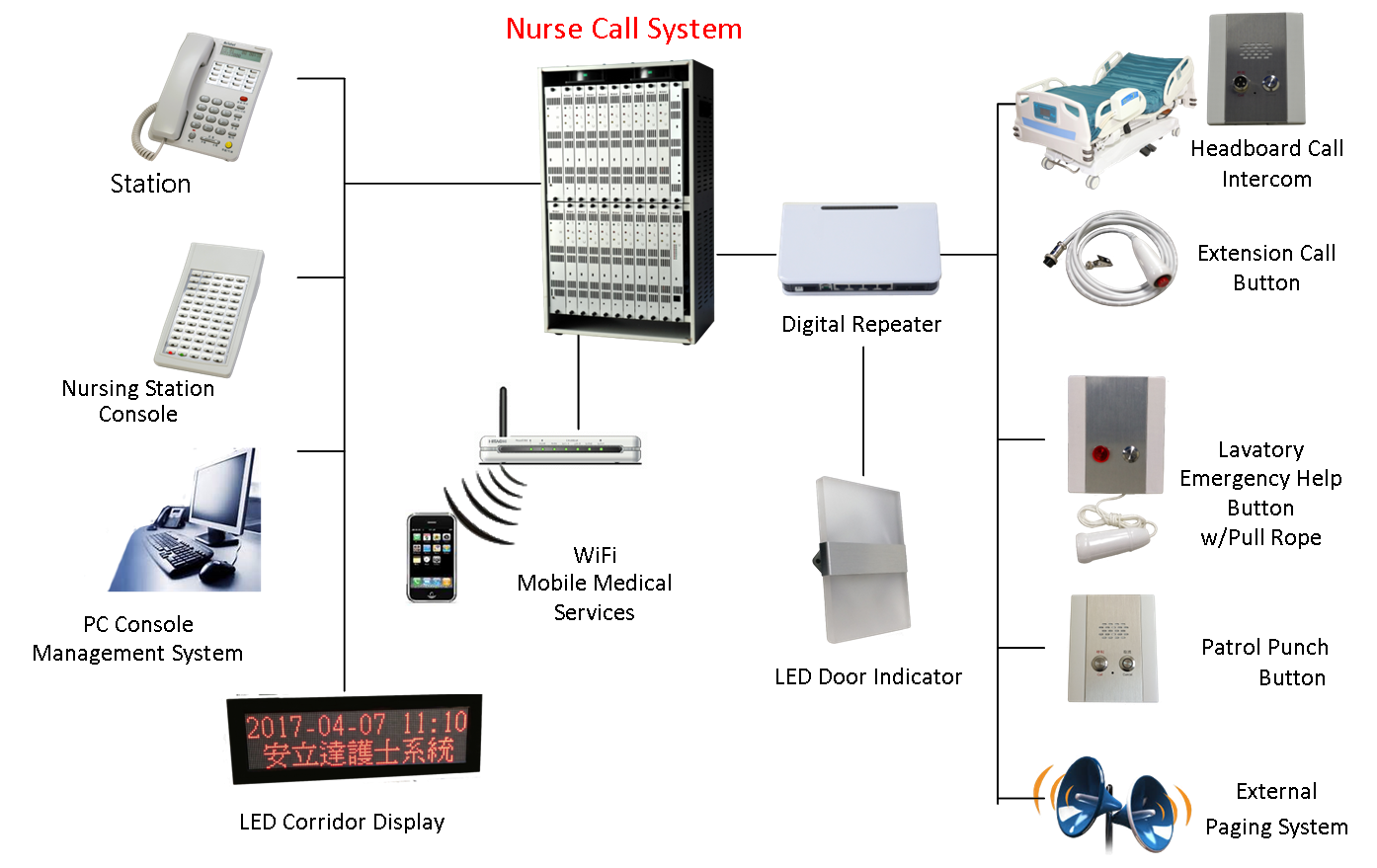

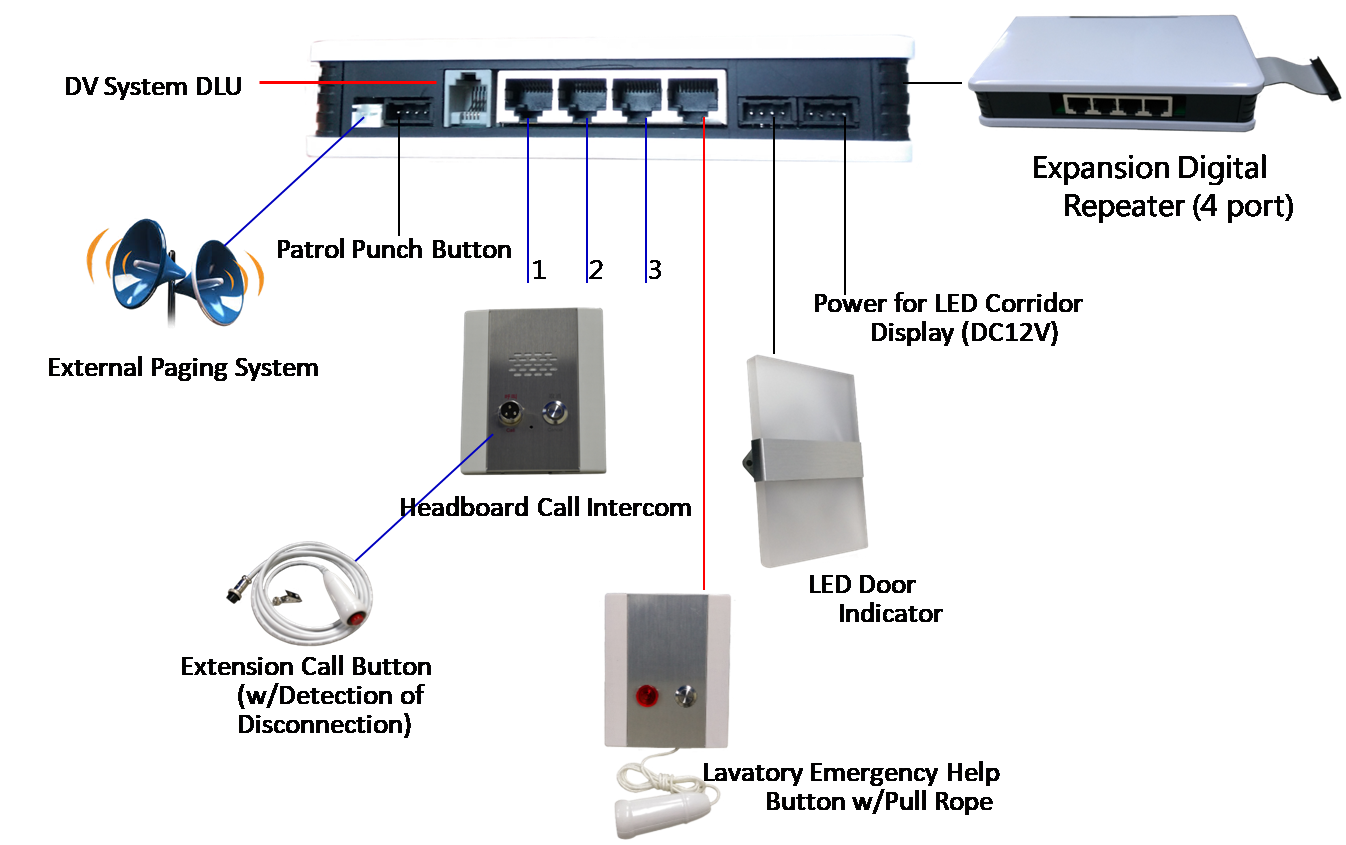

Digital Repeater
|
1.Connect to Nurse Call System 2.Support 3 Beds and 1 Restroom 3.Control and Provide Power to LED Door Indicator |
Headboard Call Intercom
|
1.Connect to Digital Repeater 2.Handsfree Conversation 3.One voice channel in one room |
|
WiFi Router
|
1.Connect to system PC 2.Request the nurses for helps 3.Support Mobile Medical Services |
Extension Call Button
|
1.Connect to Headboard Call Intercom and activate the handsfree conversation 2.Detection of disconnection |
|
LED Corridor Display
|
1.Connect to PC 2.Provide bi-languages of Chinese/English and any messages 3. Display any other messages input |
LED Door Indicator
|
1.Connect to Digital Repeater 2.Indicate the calling conditions 3. Display the patrol medical status |
|
DSS60 Console Station
|
1. Connect to Nurse Call System 2.Indicate the status of maximum 60 rooms |
Lavatory Emergency Help Button w/Pull Rope
|
1.Connect to Digital Repeater 2.After pressing the button, the LED Door Indicator Light would flashed 3. Attract the nurse’s urgent attention |

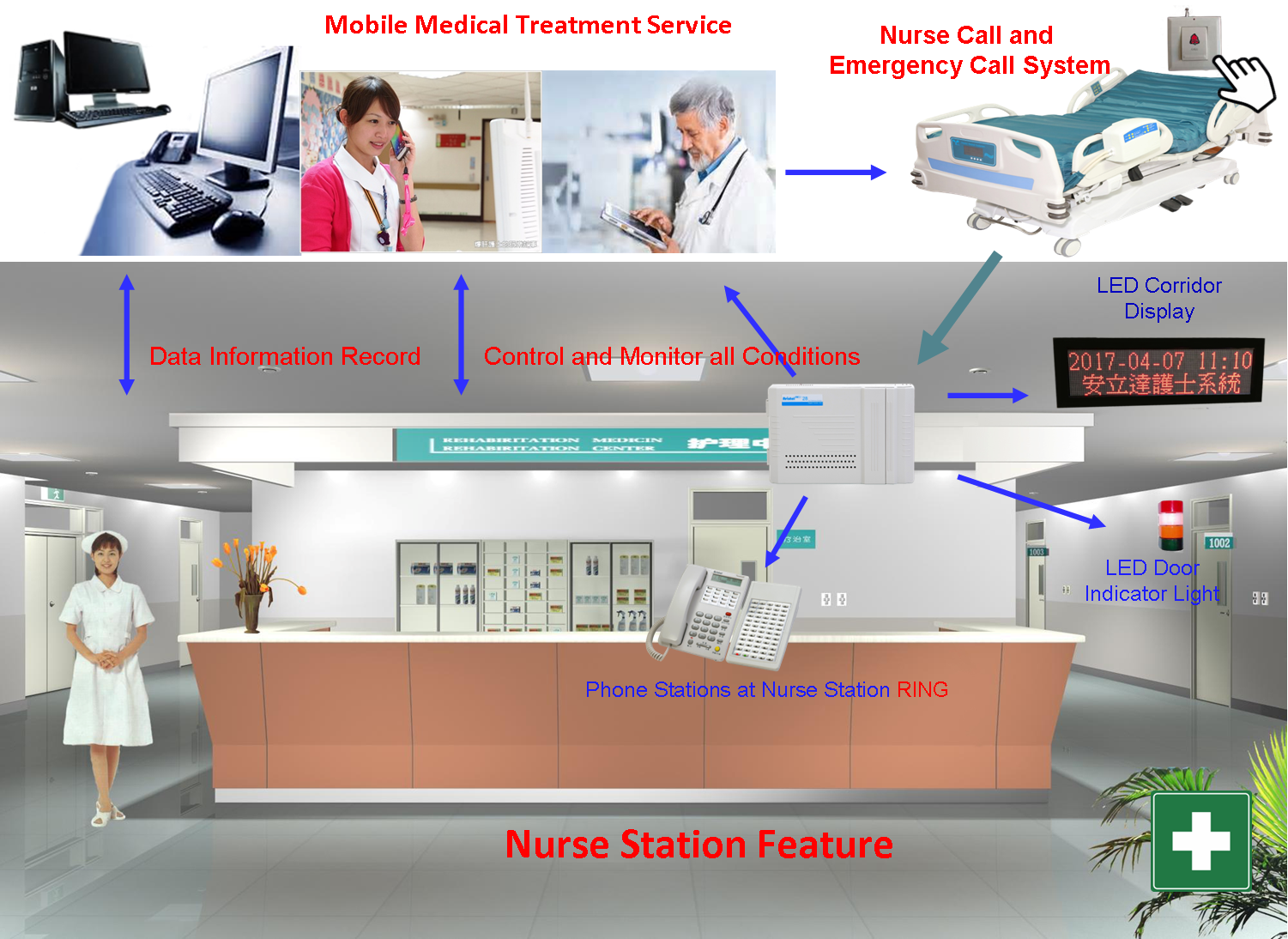

| 1. Nurse Station Calls the System | |
|
(1) The System calls the individual patient bed. The two-way handsfree conversation
(2) Automatically call back in priority sequence (3) Handsfree or hand held conversation. (4) The normal Emergency sound to be rung and the patient bed to be displayed if the call was from the patient bed (5) The severe Emergency sound to be rung and the patient bed to be displayed if the call was from the lavatory (6) The system at the nurse Station will inform the nurse in moving about the patient bed number |
|
| 2. Emergency Call from the Patient Bed | |
|
(1) Press the Emergency Button or Pull the Extension Rope
➢The Indicator of the Headboard Call Intercom ON ➢The LED Door Indicator Light ON ➢The System send the emergent sound to the Phone Station at the Nurse Station. ➢The Corridor Display shows the calling ward and bed number ➢The mobile Phone of the nurse in moving will be rung and shows the calling ward and patient bed number ➢The display monitor shows the status of the calling patient’s bed and treating time |
|
| (2) Handsfree or hand held conversation between the patient bed and nurse station | |
| (3) Programmable setting for releasing the emergency button only at the calling place | |
| (4) The system will record all information about the calling time, the releasing time and the nurse code | |
| 3. Lavatory Emergency Help Button | |
|
(1) Indicator on Emergency Button ON
➢Door Indicator Light ON ➢Station at Nurse Station RING ➢LED Corridor Display shows the Ward and the bed number ➢The mobile Phone of the Patrol nurse displays the status of the calling patient ➢The display monitor shows the status of the calling patient’s bed and treating time |
|
| (2) The Nurse Station instructed the nurse to be attendant | |
| (3) Must go to the Station to press the cancel button | |
| (4) The system will record all information about the calling time, the releasing time and the nurse code. | |
| 4. Management Information Record | |
| (1) Record the calling time from the patient | |
| (2) Record the time duration between the patient and the nurse | |
| (3) Record the time when the nurse being attendant | |
| (4) Record the nurse’s performance. | |
| (5) Keep all true records on PC and avoid the medical dispute. |
| Select the system capacity as per the real requirement | |
| such as for 30 / 60 / 90 / 120 / 360 / 600 / 1000 or more | |
| Modulated design for the possible expansion, Clear Sound Quality , Fast Performance | |
| Optional Wi-Fi mobile Phone for the nurse in moving |
|

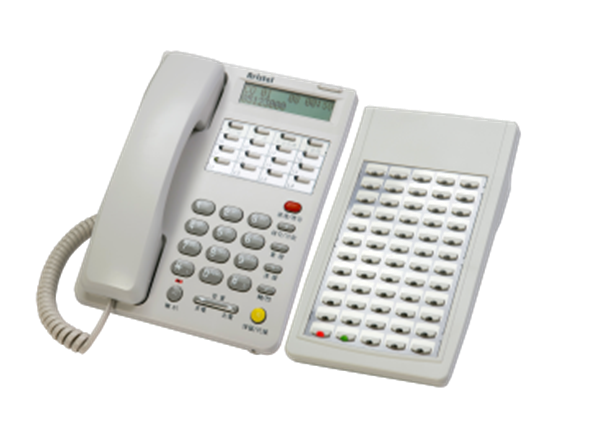

Backlight Display Phone ＋ Phone Console Quantity subject to the Ward numbers Each LED Indicator can stand for the bed to reflect the treating condition Hands free Conversation between the calling Bed and Phone Console at the Nurse Station Enable to Page to single station, single group or all groups. The front and rear beep sound is announced The name can be stored in the phone book for easy identification and prevent from the unnecessary mistakes |
|
|
|
When more than one nurse or emergency call is on calling, the PC console will rotating constant display and priority flashing display (including warning tone). The nurse call and the emergency call can be clearly distinguished by the ringing tone, and the volume and ringing tone can be adjusted The emergency call requires a secure design for on-site recovery. If it is not processed beyond a certain time, the call will be initiated again until the emergency call is cancelled |
|
|
The Patrol Medical Service Function can be activated on WiFi Phone to realize the condition of the called patient The others at the Nurse Station can know the ward number where the treatment is taking from the Phone Console Indicator or the Door Indictor Light. |
| Nurse in Moving | ||||||
|
 |
|
||||
|
|
|
Auto adjustment for the Voice Volume and Paging Volume according to the Day/Night time The Nurse list on duty can be automatically switched according to the day/night time |

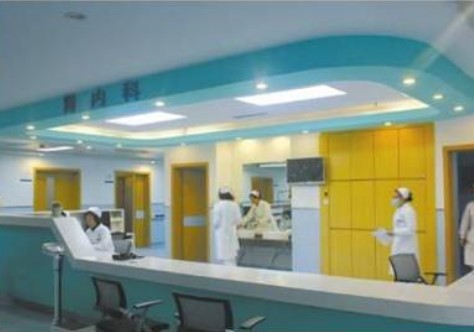

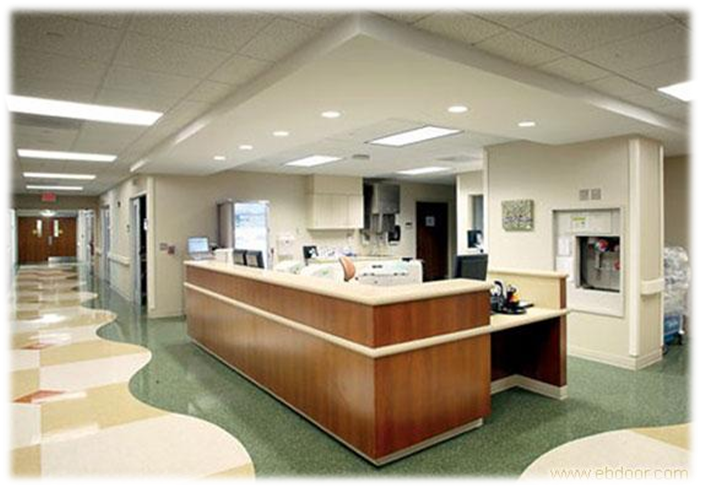

| Nurse Station at Day Time | Nurse Station at Night Time |
 |
 |
|
The call from the headboard Intercom can be forwarded to the assigned nurse. While No answer by this nurse, the call will be transferred to other available nurse The internal conversation is capable among the system is by dialing the station number The Call forward is supported |
|
|
