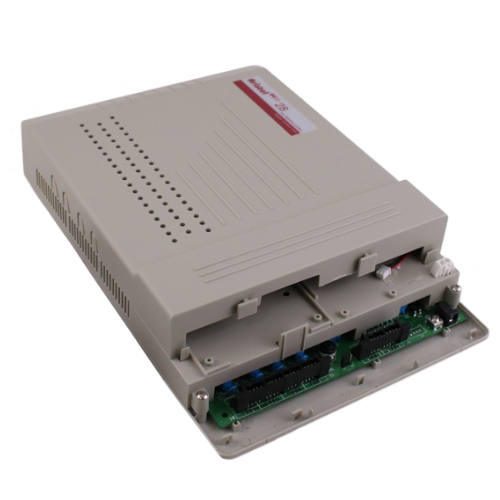

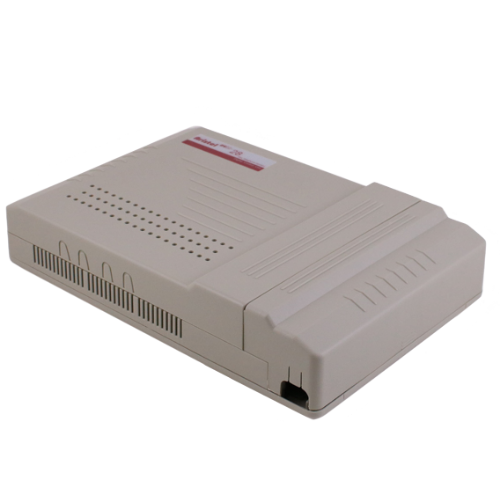

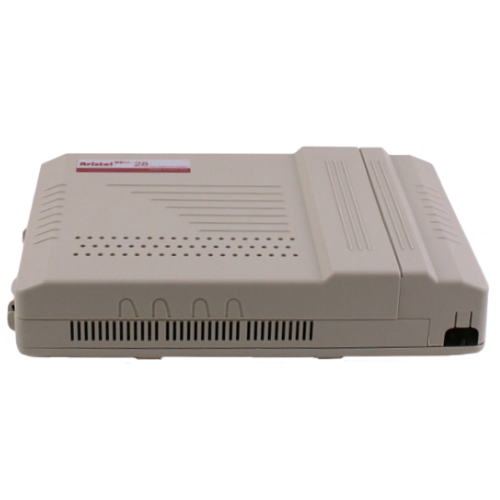

IP-28




Product Specification

1. Cabinet Dimension (WxDxH):10x205x70 mm (as an A4 Compact Size)
2. Basic Capacity: 4CO, 8 Stations.
3. Maximum Capacity: 8CO, 20 Stations.
4. Applicable to all models of Aristel Key Phones.
5. Built-in IPX Module can support 20—99 IP Registrars.

Feature Lists

1. Support built-in multi-track recording(IPR)
2. Built-in Auto Attendant.
3. Built-in Voice Mail
4. Any Smart Phones can be registered as a System Station.

PCB Description

1. D5MBUA ( IP28 Motherboard )
2. D5TKUA ( Trunk Card Unit )
3. D5DLUA ( Digital Key Station Card )
4. D4HYUB ( Hybrid Station Card )
5. D4SLCA ( Analog SLT Station Card )
6. D4VSCA ( Voice Service Card )
7. D4MFCA ( Multi Function Door Phone Card )
8. D5EPXA ( Sub-Control Board for Expansion Cards )
9. D5IPXA ( VoIP Card )

Download List
Item Description Download Here
01 Windows IPPBX System Management
02 Setup Manual
